KT-Guide Elements: Developed
and Manufactured by Specialists!

Precision-Engineered. Technically Sophisticated. Reliable in Operation.

For over 40 years, S.F. Components has been developing KT-Guide Elements for use in hydraulic systems.

As experts in the field of KT-Guide Elements, we manufacture products for you to the highest standards, using state-of-the-art CNC technology, material expertise, and many years of experience, all while meeting the highest quality requirements. Our manufacturing expertise is the key to precision and offers a high degree of flexibility and reliability.

High Technical Standards

Each guide element is manufactured precisely to technical specifications, meets the high load requirements of modern hydraulic systems, and ensures the precise guidance of pistons and piston rods in hydraulic and pneumatic cylinders.

Variety and Quality of Materials

Thanks to a wide range of high-performance materials combined with state-of-the-art technology, our guide elements reliably absorb lateral loads, even under high operating loads. They prevent metal-to-metal contact between components and ensure smooth, efficient operation.

Our Mission

As specialists in KT-Guide Elements, we offer optimal solutions for a wide range of applications and industries by combining innovative materials, expert advice, and state-of-the-art engineering. Our guide elements are available in a variety of designs and materials to ideally meet any specific needs.

Manufacturing Expertise That Makes a Difference

Our guide elements are available in a variety of designs: in various material combinations, as ready-to-install rings, by the meter, in spools, or preformed into a spiral shape.

Some of our material combinations are treated with special lubricants to improve friction characteristics and reduce breakaway force. You can find an overview of materials and designs here.  

Thanks to their outstanding material properties, our versatile materials are perfectly suited for use in hydraulic systems across a wide range of industries and technical applications.

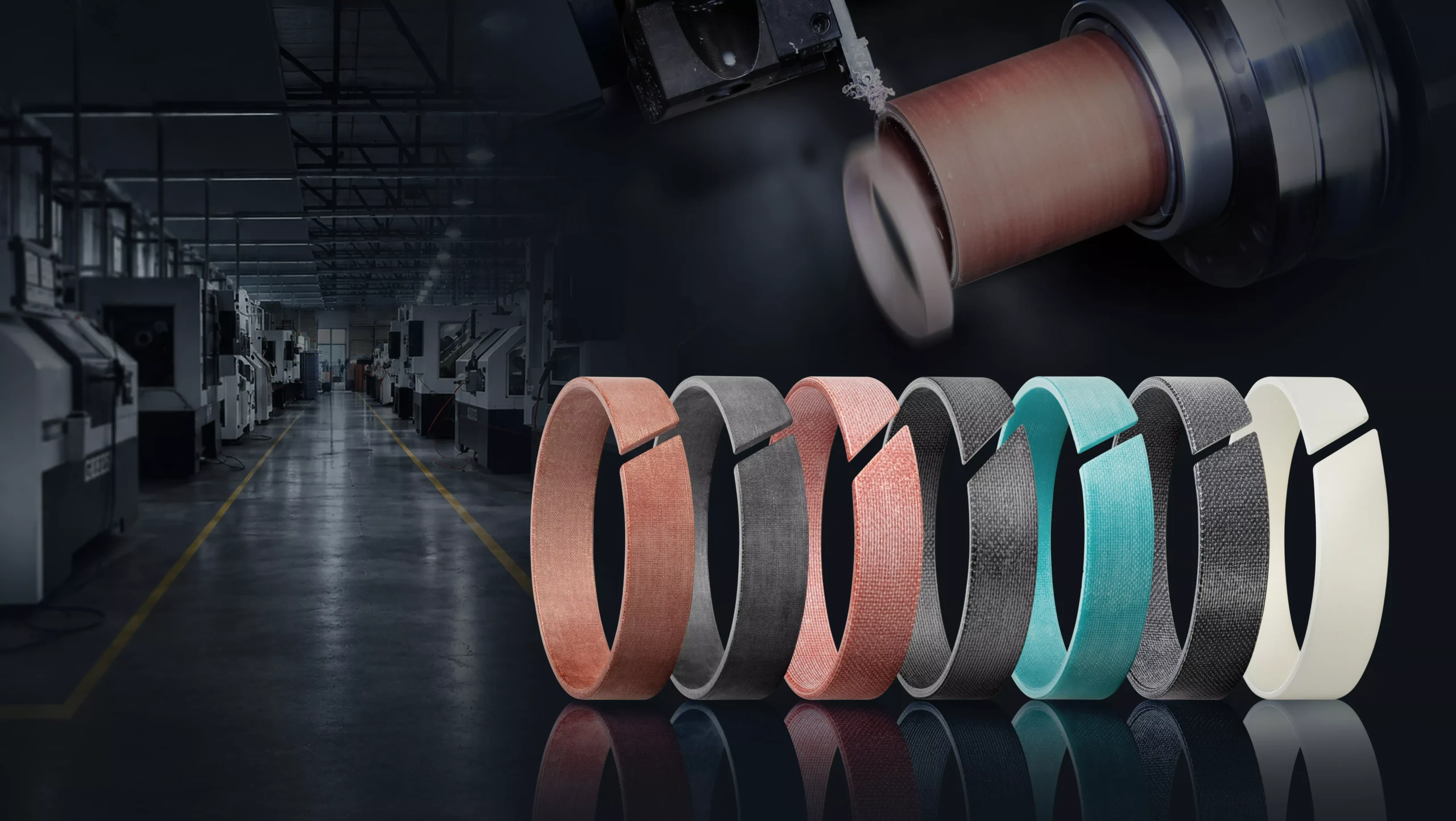

Guide Rings

KT100

Cotton fabric / phenolic resinTemperature: −30…+120 °C | Static compressive strength: ≤ 290 N/mm²

KT107

Cotton fabric / phenolic resin + graphite lubricant additiveTemp.: −30…+120 °C | Static compressive strength: ≤ 290 N/mm²

KT200B

Polyester fabric / epoxy resinTemperature: −30…+120 °C | Static compressive strength: ≤ 320 N/mm²

KT200®

Synthetic fiber fabric / phenolic resin + PTFE lubricant additiveTemp.: −40…+130 °C | Static compressive strength: ≤ 340 N/mm²

KT500

Polyester fabric / polyester resin + graphite lubricant additiveTemp.: −30…+120 °C | Static compressive strength: ≤ 340 N/mm²

KT500-T

Polyester fabric / polyester resin + PTFE lubricant additiveTemp.: −30…+120 °C | Static compressive strength: ≤ 340 N/mm²

KT700

Aramid fabric / phenolic resin + graphite lubricant additiveTemp.: −40…+200 °C | Static compressive strength: ≤ 350 N/mm²

Specifications and Materials Overview

Material Overview: Guide Rings

Type

Material

Additive Lubricant

Additive lubricant

Temperature Range

Static Compressive Strength

KT100

Cotton fabric / Phenolic resin

–

−30…+120 °C

≤ 290 N/mm²

KT107

Cotton fabric / Phenolic resin

Graphite

−30…+120 °C

≤ 290 N/mm²

KT200B

Polyester fabric / Epoxy resin

–

−30…+120 °C

≤ 320 N/mm²

KT200®

Synthetic Fiber Fabric / Phenolic Resin

PTFE

−40…+130 °C

≤ 340 N/mm²

KT500

Polyester fabric / Polyester resin

Graphite

−30…+120 °C

≤ 340 N/mm²

KT500-T (Turquoise)

Polyester fabric / Polyester resin

PTFE

−30…+120 °C

≤ 340 N/mm²

KT700

Aramid fabric / Phenolic resin

Graphite

−40…+200 °C

≤ 350 N/mm²

Specifications for Guide Rings

Product type

Ready-to-install guide rings for hydraulic cylinders, designed as rod and piston guide rings made of fabric composite materials

Design

Standard dimensions / custom dimensions / custom-made products based on drawings / custom sizing and tolerances

Dimensions

Inner diameter:
from 10 mm (KT100 / KT107 / KT200® / KT500 Graphite),
from 12 mm (KT500-T),
from 16 mm (KT200B),
from 20 mm (KT700)

Ring thickness: 0.5 mm to 30 mm
Width: up to 300 mm
Thickness tolerance: +0 / −0.05 (KT100: +0 / −0.06)

Materials

Cotton, synthetic fiber, and polyester fabrics impregnated with phenolic, polyester, or epoxy resin, as well as aramid fabrics impregnated with modified phenolic resin, some of which contain PTFE or graphite as lubricants

Features

High load-bearing capacity, good sliding properties, high temperature resistance, good wear resistance, easy installation, high availability in standard dimensions

Areas of use

Ready-to-install guide rings for hydraulic cylinders, construction equipment, agricultural machinery, industrial hydraulics, heavy industry, mining, offshore applications, press manufacturing, and tool and machine construction

Production
scope

Custom manufacturing of specific materials, small-batch production, mass production

Product availability

Standard dimensions: in stock and available quickly
Custom dimensions: manufactured upon request

Guide Tapes

KT220T

Synthetic fiber fabric / polyester resin + PTFE lubricant additiveTemp.: −30…+120 °C | Static compressive strength: ≤ 340 N/mm²

KT500T

Polyester fabric / polyester resin + graphite lubricant additiveTemp.: −30…+120 °C | Static compressive strength: ≤ 340 N/mm²

KT500T-T

Polyester fabric / polyester resin + PTFE lubricant additiveTemp.: −30…+120 °C | Static compressive strength: ≤ 340 N/mm²

KT218T

Polyester fabric / polyester resinTemp.: −30…+120 °C | Static compressive strength: ≤ 340 N/mm²

KT222T

Polyester fabric / polyester resin + PTFE lubricant additiveTemp.: −30…+120 °C | Static compressive strength: ≤ 340 N/mm²

KT700T

Aramid fiber fabric impregnated with modified synthetic resin Temp.: −40…+200 °C | Static pressure resistance: ≤ 350 N/mm²

Specifications and Materials Overview

Material Overview: Guide Tapes

Type

Material

Additive Lubricant

Additive lubricant

Temperature Range

Static Compressive Strength

KT220T

Synthetic Fiber Fabric / Polyester Resin

PTFE

−30…+120 °C

≤ 340 N/mm²

KT500T

Polyester fabric / Polyester resin

Graphite

−30…+120 °C

≤ 340 N/mm²

KT500T-T

Polyester fabric / Polyester resin

PTFE

−30…+120 °C

≤ 340 N/mm²

KT218T

Polyester fabric / Polyester resin

PTFE

−30…+120 °C

≤ 340 N/mm²

KT222T

Polyester fabric / Polyester resin

PTFE

−30…+120 °C

≤ 340 N/mm²

KT700T

Aramid fabric in a modified synthetic resin

–

−40…+200 °C

≤ 350 N/mm²
